Lubrication Technologies for Aluminum Extrusion and Casting

Why 3500 and 410 BNP Boron Nitride Powder
for Electrostatic Billet Lubrication?

Exceptional Release Properties

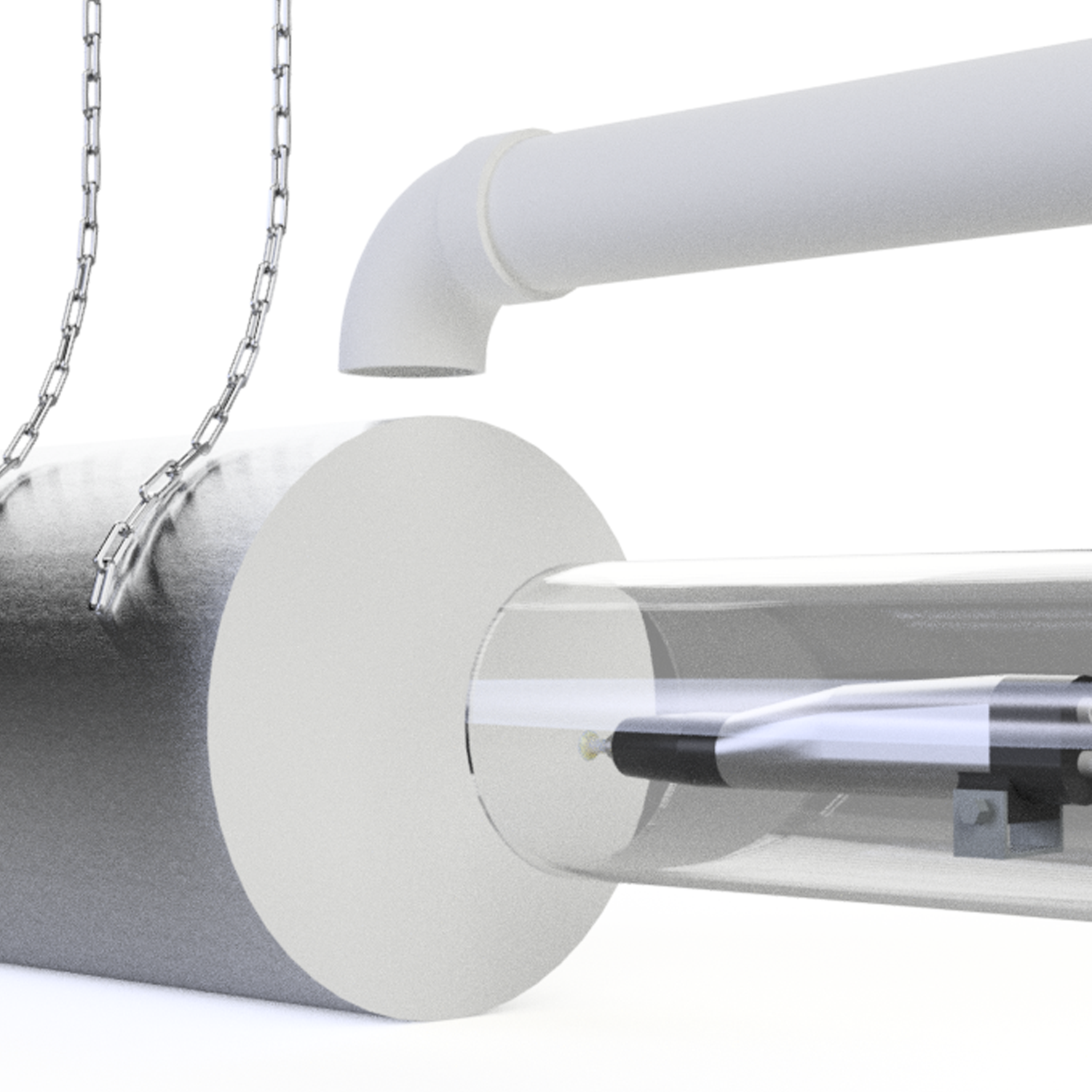

3500 Electrostatic Powder Application

Boron Nitride provides an unmatched barrier between aluminum and tooling surfaces, preventing adhesion and buildup on the dummy block. This protection helps maintain smooth billet release and minimizes problems associated with aluminum build up.

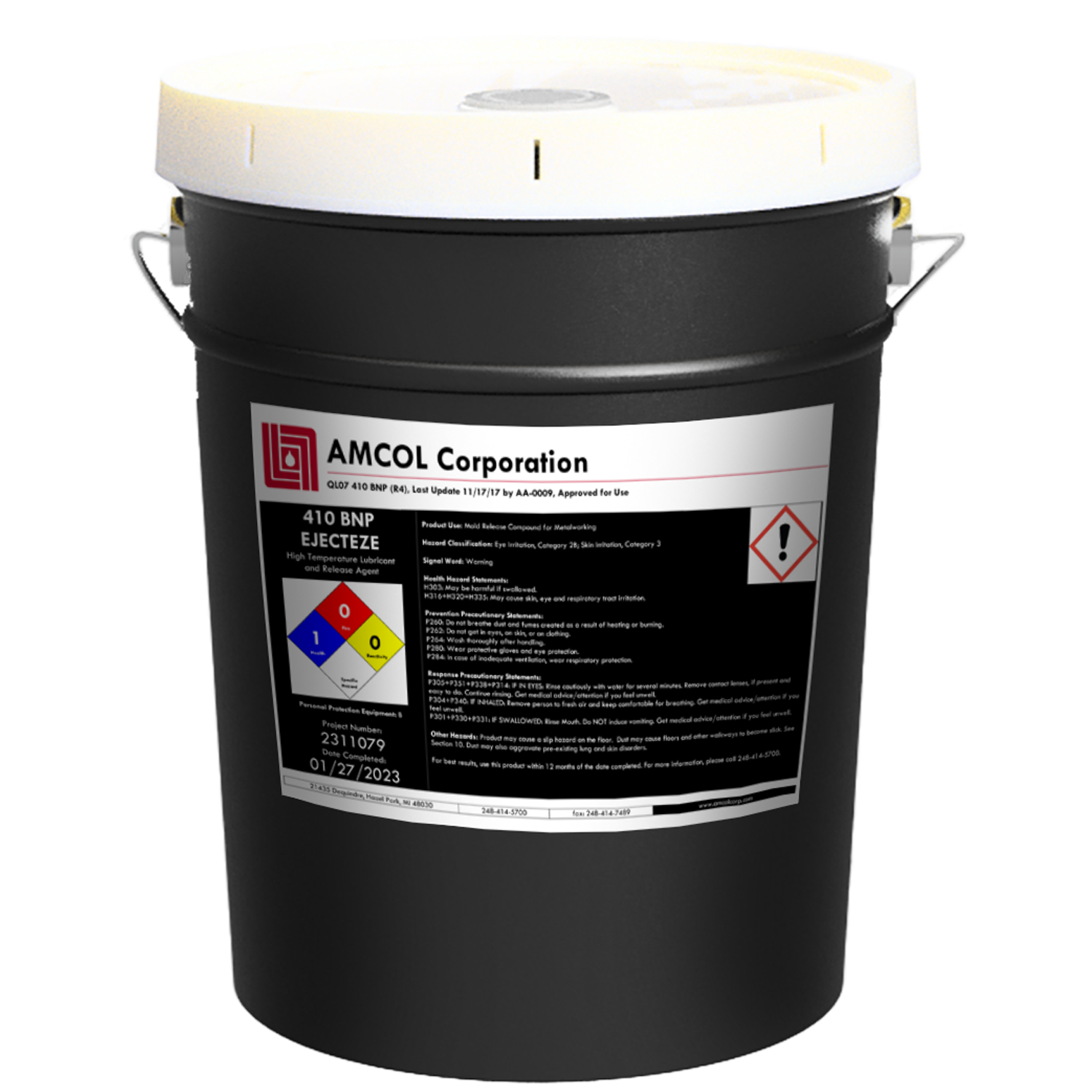

410 BNP EJECTEZE

Only a thin, uniform coating is needed to achieve full release. Using less lubricant not only saves material cost but also promotes a cleaner press area and more consistent lubrication across billets. The result is increased uptime and better dummy block performance.

Increase Safety and Productivity

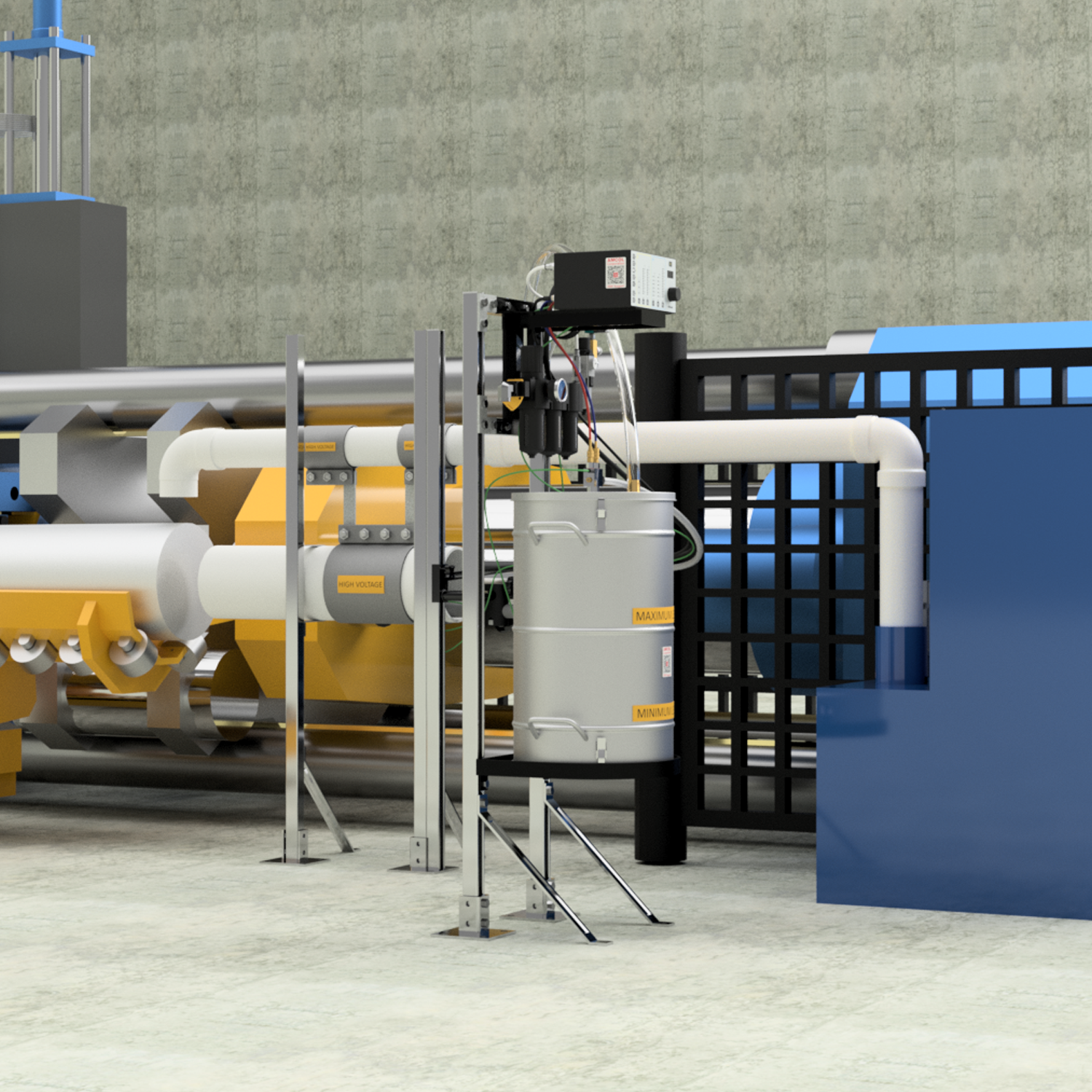

Dust Collection Integration

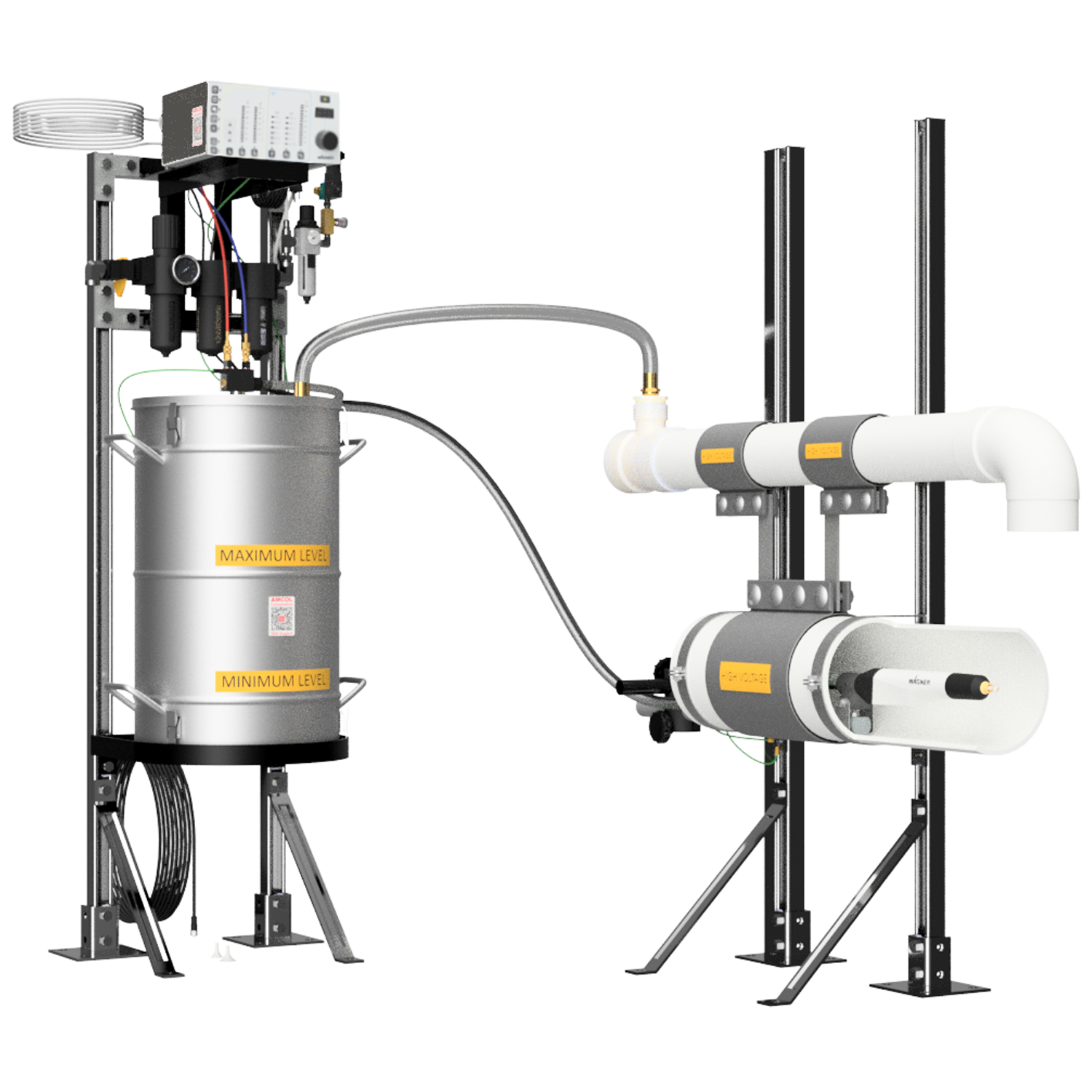

The 3500 Application System is plug and play ready for powder collection. The system is optimized to minimize overspray, but ready to handle what doesn’t adhere to the billet, preventing airborne dust and keeping the workspace clean. Pairing the system with a proper dust collection with HEPA filtration setup further improves air quality and operator comfort.

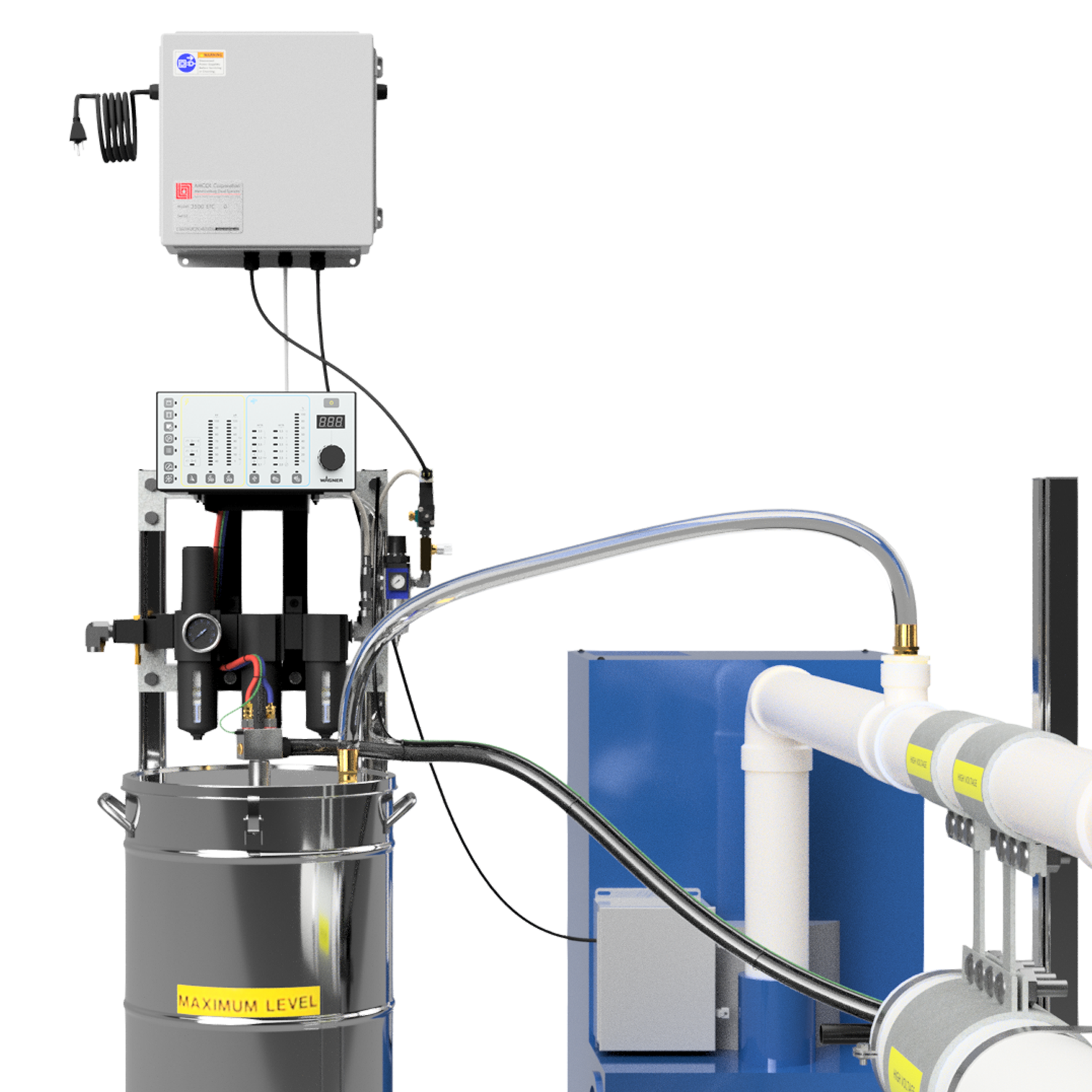

Hands-Free Application

The electrostatic application system eliminates the need for manual press lubrication, reducing operator exposure to high temperatures and moving components. By automating the lubrication process, plants can achieve consistent coverage, faster billet turnaround, and improved safety compliance on the press line.

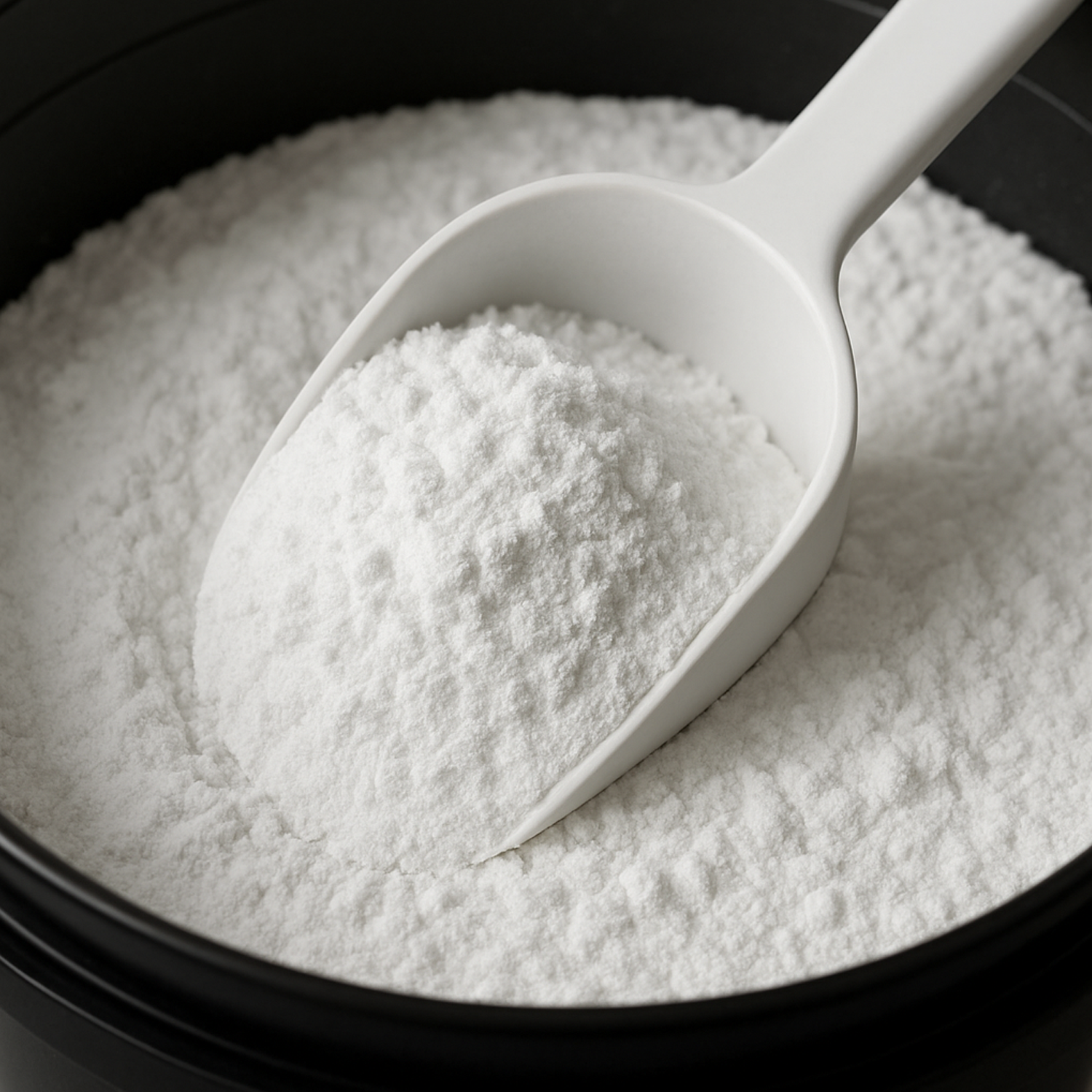

No Mixing Required

Use As Is

Unlike traditional billet coatings that require water dilution or agitation, AMCOL’s 410 BNP DYLUBE powder is ready to use straight from the pail. Its proprietary Boron Nitride blend is engineered for uniform flow through the 3500 system and optimized for electrostatic adhesion.

Consistent Batch Quality

Each batch is pre-blended and moisture-controlled to ensure reliable feed characteristics and spray uniformity. This eliminates variability caused by operator mixing, shortens setup time, and ensures consistent billet coverage across shifts and production runs.
