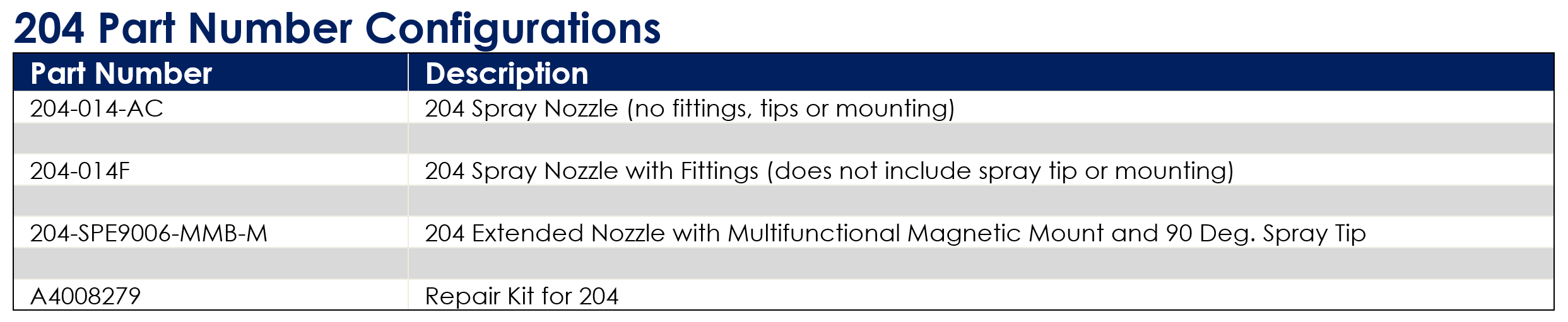

204 Atomizing Spray Nozzle

AMCOL is refining the 3049B Hot Shear Lubrication System.  The new 204 Atomizing Spray Nozzle will replace the older 202 model. 204 is now the only available part. This new 204 design replaces the two stage macro/micro adjustments of the previous 202 with a single adjustment built into the spray body. Liquid volume is adjusted by rotating the knob which clicks into place.  The connections, air settings, spray extensions, and mounting are the same, making retrofits to older systems simple (air and liquid connections are on opposite sides compared to the 202).

For more information about 3049B Systems please see the AMCOL 3049B Automatic Butt Discard System Technical Bulletin and Operator’s Manual.

If you have questions, please contact your AMCOL Sales Representative at 248-414-5700.

Related documents:

AMCOL - 204 Atomizing Spray Nozzle PDF

A PDF version of the 204 Atomizer Product Bulletin.

3049B Automatic Butt Discard System - Technical Description

The Technical Description provides a system overview, main components, and how to specify information.

3049B Automatic Butt Discard System - Operators Manual

The Operator’s Manual includes assembly, installation, recommended settings, maintenance, and trouble shooting information.
